SB10110-25
Model：SB101110-80
Introduction

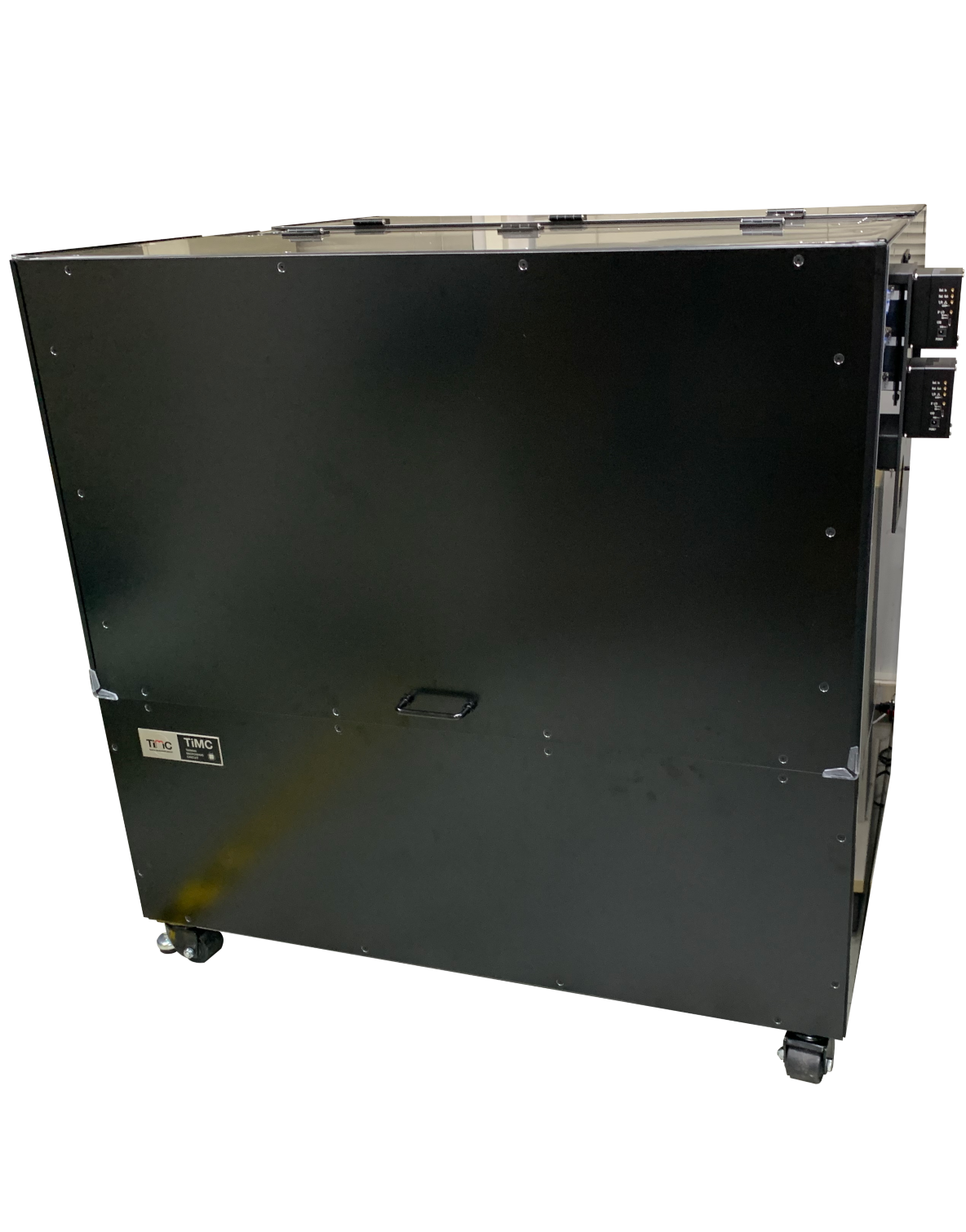

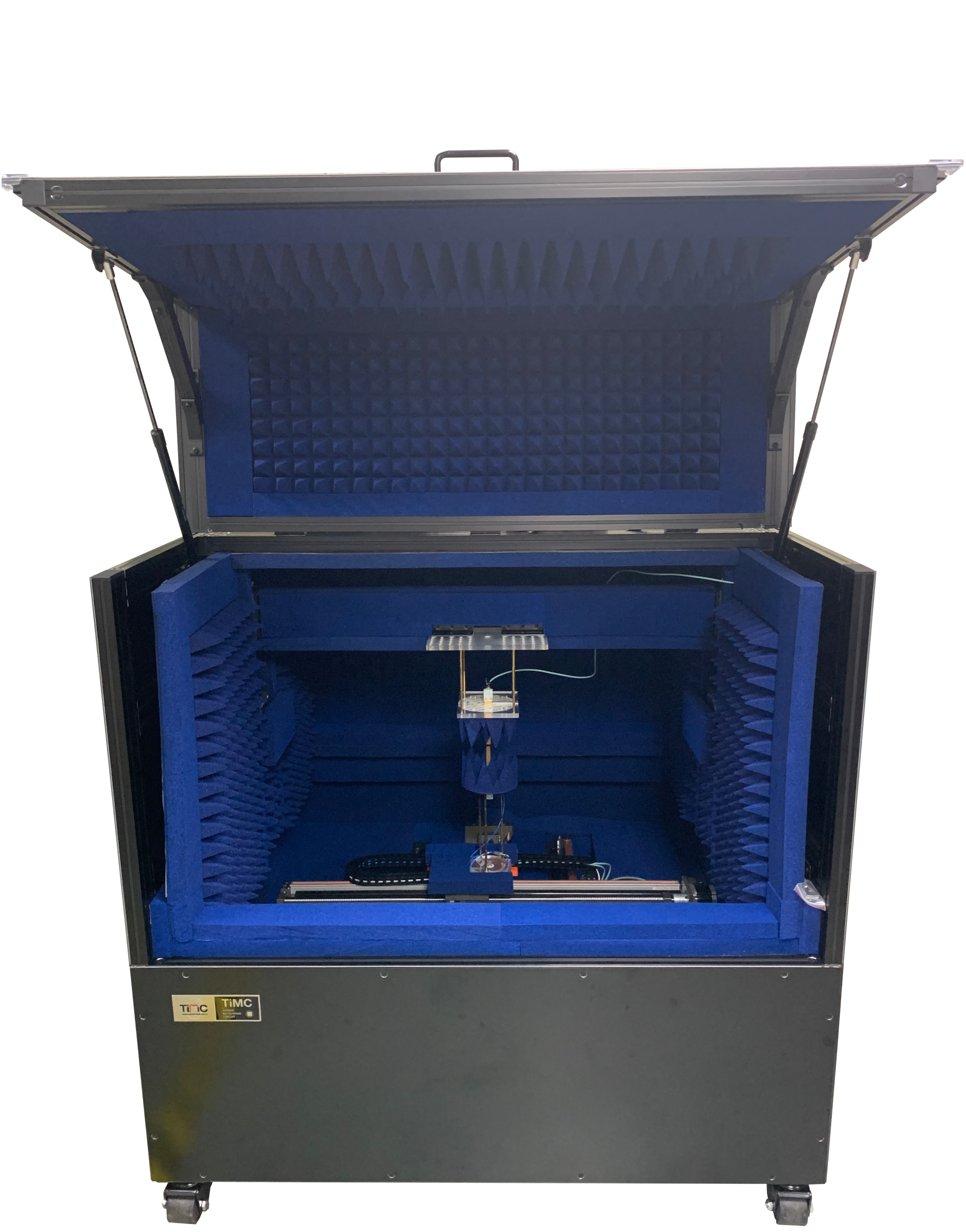

- Near-field antenna measurement box, suitable for large-scale antenna measurement (SATCOM array system).
Feature
- Fast testing speed：Near-field antenna measurement can obtain accurate test results in a shorter time. This fast testing method can save time and costs and promote product development progress.
- High accuracy：The near-field antenna measurement method has high accuracy and sensitivity, can capture small changes in the antenna, and provide more accurate test results. Therefore, the near-field antenna measurement method is widely used in various high-demand antenna tests.
- Small space occupation：Compared with far-field antenna testing, near-field antenna measurement only requires a smaller testing space, making it easier to arrange and manage. This also makes high-scale antenna array has more flexible in design and testing.
Machine Parameters
Measurement parameters
| Size (W x L x H) | 1.1 x 1.2 x 1.1 (m^3) |
|---|---|
| Weight | 200 (kg) |
| Number of ports | RF port：3 |
| Port type | RF port：2.92-F |
| Frquency | 10-40GHz |
|---|---|
| DUT size | 65 x 65 (𝑐𝑚^3) |
| DUT weight | 8 kg |
