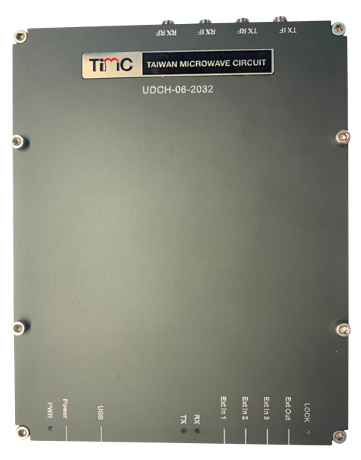

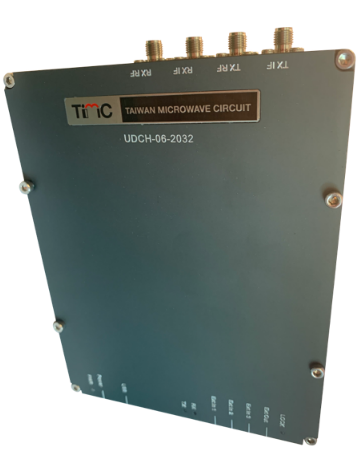

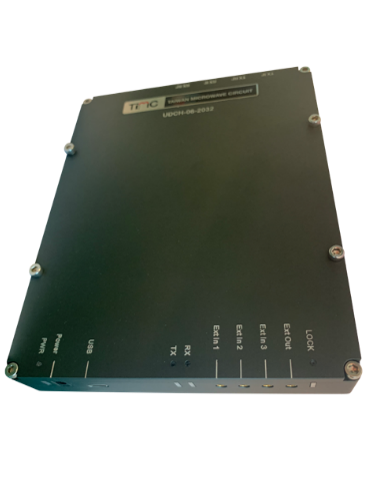

mm Wave Up/Down Convertor
Model：HUDC-06-2032
Features
- Wide bandwidth
- High stability
- Low noise
- High conversion gain
- Low power consumption
- High dynamic range
- Small and lightweight
- Easy to operate
Machine Parameters
RF Parameters
Other
| Size (W x L x H) | 15.6 x 12.6 x 3.2 (cm^3) |
|---|---|
| Weight | 200 (g) |
| Number of ports | RF port：2 IF port：2 Clock port：4 (in x3 and out x1) |
| Port type | RF port：2.92-F IF port：2.92-F Clock port：MMCX-F |
| Up-convert | |
|---|---|
| IF frequency (GHz) | DC-6GHz |
| RF frequency (GHz) | 20 – 32 GHz |
| Up-convert | |
| IF frequency (GHz) | DC-6GHz |
| RF frequency (GHz) | 20 – 32 GHz |
| T/R switch | No |
|---|---|
| Power in (DC/ A) | 12 Vdc/ 1A |
| Fan | No |
| Operating Temperature | −20 𝑜𝐶 to +65 𝑜𝐶 |
